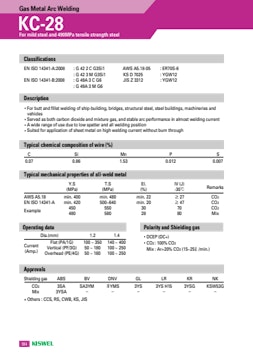

KC-28 AWS A5. 18-05 : ER70S-6 Ø1.0-1.2
by KISWEL
Served as both carbon dioxide and mixture gas, and stable arc performance in almost welding current
AWS:
A5.18 : ER70S-6
Specification
Key Features
| Sizes (mm) | Standard | Welding Position | Shielding gas | Polarity | |
|---|---|---|---|---|---|
| 0.8~1.6 | AWS A5.18 EN 14341-A EN 14341-B JIS Z 3312 KS D 7025 |
ER70S-6 G 42 2(3) C(M) G3Si1 G 49A 3 C(M) G6 YGW12 YGW12 |
F, HF | CO2 / Ar+20%CO2 | DC(+) |
| Typical chemical composition of wire (%) | ||||||||
|---|---|---|---|---|---|---|---|---|
| C | Si | Mn | P | S | Cr | Ni | Mo | Remark |
| 0.07 | 0.86 | 1.53 | 0.012 | 0.007 | - | - | - | - |
| Typical mechanical properties of all-weld metal | |||||
|---|---|---|---|---|---|
| Y.S (MPa) | T.S (MPa) | EI. (%) | Hardness (HV) | IV (J) | PWHT |
| 450 480 |
550 580 |
30 28 |
- | 70 (-30℃) 80 (-30℃) |
- |
Product Dimensions and Weld Current Range
| Welding Position |
Sizes (mm) | Ampere (A) | Volt (V) | ||
|---|---|---|---|---|---|
| Min. | Max. | Min. | Max. | ||
| All Positon | 0.9mm | 70 | 250 | 14 | 25 |
| All Positon | 1.2mm | 100 | 350 | 16 | 34 |
| All Positon | 1.6mm | 120 | 450 | 16 | 38 |
