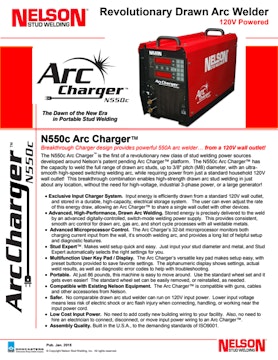

Nelson N550c Arc Charger
by Nelson
The n550c Arc Charger™ is the first of a revolutionary new class of stud welding power sources developed around Nelson’s patent pending Arc Charger™ platform. The n550c Arc Charger™ has the capacity to weld the full range of drawn arc studs, up to 3/8” pitch (M8) diameter, with an ultra-smooth high-speed switching welding arc, while requiring power from just a standard household 120V wall outlet! This breakthrough combination enables high-strength drawn arc stud welding in just about any location, without the need for highvoltage, industrial 3-phase power, or a large generator.
Specification
n550c Arc Charger Specifications:
- 120V input voltage
- 3A to 15A input current, user adjustable
- 60 Hz input line frequency
- Welds 6-3/8” pitch studs per minute
- Welds 15-3/16” studs per minute
- 3/8” pitch maximum diameter for steel, stainless steel and aluminum studs
- 9 ft. (2.75 m) power cord
- 86 lbs. (39 kg)
- Standard 120VAC, 3-prong, grounded input power connection
- 25W maximum idle power
- Touch pad display with graphical diagnostics
