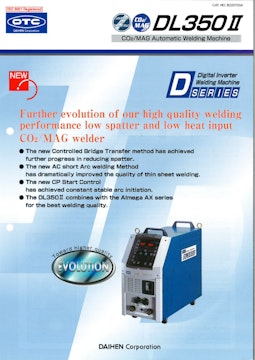

DL-350II
by OTC Daihen
Further evolution of our high quality welding performance low spatter and low heat input CO2 /MAG welder.
A welder essential for high quality CO2/MAG welding Advance the Progress of low spatter performance and thin sheet welding performance.
- Advance Low Spatter Performance!
- Advance Thin Sheet Welding Performance!
- Advance Arc Start Performance
Specification
Specification
* Standard Specification
| Welding power source | Type | DL350 (S-2) | |||||||
| Rated Input Voltage | V | 200/220(For both 50/60 Hz) | |||||||
| Phase | 3 phases | ||||||||
| Rated Input | kVA | 18.2(16.6 kW) | |||||||
| Rated Duty Cycle | % | 60 | |||||||
| Rated Output Current | A | 350 | |||||||
| Rated Load Voltage | V | 36 | |||||||
| Range of Output Current | A | 30~350 | |||||||
| Range of Output Voltage | V | 12~36 | |||||||
| Max. no-load Voltage | V | 84 | |||||||
| Dimensions (W x D x H) | mm | 300x705x595 (excluding handle) | |||||||
| Weight | kg | 55 | |||||||
| Wire Feeder Power Cable | Type | BKPDT-6002 | |||||||
| Cable Size | mm² | 60 | |||||||
| Base Metal Power Cable | Type | BKPDT-6002 | |||||||
| Cable Size | mm² | 60 | |||||||
| Wire Feeder | Type | CMV-7401 (semi-automatic) | CMRE-741 (other robots) | ||||||
| *Applicable Wire Size | mm | (0.8), 0.9, 1.0, 1.2, (1.4, 1.6) | |||||||
| Wires Type | Solid Wire, Flux-cored Wire | ||||||||
| Wire Feeding Speed | m | 22 | |||||||
| Dimensions (W x D x H) | mm | 215x543x350 | 195x275x248 (excluding cables) | ||||||
| Weight | kg | 13 | 7 | ||||||
| CO²/MAG Welding Torch | Type | WT3500-SD | WT3510-SD | ||||||
| Rated Current | A | 350 | 350 | ||||||
| *Applicable Wire Size | mm | (0.9, 1.0), 1.2 | (0.9, 1.0), 1.2, (1.4) | ||||||
| Duty Cycle | % | 30 | 60 | ||||||
| Cooling Method | Air Cooling | Air Cooling | |||||||
| Cable length | m | 3, (4.5, 6) | 3, (4.5, 6) | ||||||
