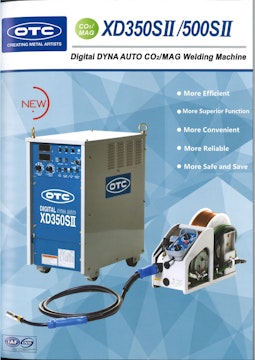

XD-350SII / XD-500SII
by OTC Daihen
Dyna Auto XD 350 II · 500 II
Microcomputer thyristor control type CO2 / MAG automatic welding machine Excellent workability & boasts robustness Ultimate new basic model
Characteristic
Microcomputer · thyristor controlled type CO 2 / MAG automatic welding machine
XD350 II
- Improved startability with high performance microcomputer
- Improved workability by unifying control cables
- Improved durability and robustness
Simple drip-proof seat on the front as standard, protecting panel parts from sudden rain during dust and outdoor storage!
- Consideration for the environment "Power saving circuit" "Fan stop function" "Gas saving function"
XD 500 I II
- New high performance microcomputer is installed, the welding mode expansion and startability improvement are realized by the processing speed and the memory capacity up as much as the digital inverter welding machine!
- Resistant to input voltage / frequency fluctuations, always ensuring stable welding quality!
- By installing "Brake Unit" sold separately on the feeder, it is possible to suppress the feed of wire at the end of the welding as much as possible! Effective for tack welding at extension!
- Improved robustness and maintenance system, such as standard equipped with a simple drip-proof sheet that protects panel operation parts!
Specification
| Welding power supply | CPXD-350 | CPXD-500 |
| Rated input | 3Phase 380/400V | 3Phase 380/400V |
| Rated output | 350A/36V | 500A/45V |
| Output adjustment range | 50～350A/15～36V | 50～500A/15～45V |
| Rated usage rate | 50% | 60% |
| Mass (dimension) | 103kg(372×690×659mm) | 164kg(454×701×859mm) |
| Wire feeder | CM-2302 | CM-2302 |
| Welding Torch | BT3500-30、BT3510-30 | BT5000-30 |
| Gas Flow Regulator | CO2：NP-201／MAG：D-BHN-2 | FCR-226（With heater） |
